This was a breakdown of the Ardamax keylogger. This was my final project for my Reverse Engineering class, downloading a known piece of malware (mine was from theZoo), doing some analysis on it, and writing a report about it.

Using the tools and techniques we had practiced throughout the semester, the goal was to just gain as much insight as possible about the malware, like what files it created, what registries entries it created, if it made any network requests, what, if any, it’s hidden functions were.

I can’t post the full report, but I’ll summarize it here:

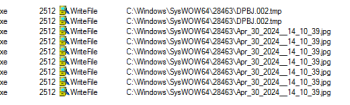

I selected an executable called Ardamax. It was a regular executable, it didn’t require any tools or dynamic analysis to unpack and decompile it. Looking through Ghidra I mostly noticed functions imported form kernel32.dll and user32.dll, mostly relating to reading and writing files, as well as some UI. I wrote a breakdown of one function that allocated some memory for a C++ objected, noted by the use of the new keyword as well as calling functions offset from that memory address allocated for the C++ object later on - member functions of whatever type that object is. Later in the dynamic analysis I would discover this function was creating temporary files to write data in chunks to. This was image data from a screenshot the keylogger was taking. Once the log/screenshot was complete it would rename it. The main executable created a registry key to launch it’s logger at startup, and hid its executable in a hidden folder in the C:\Windows\SysWOW64 directory. It stored logs and full screenshots there. Removing the malware was simple enough, just removing the registry key and deleting the hidden logging folder was sufficient to stop it from causing any further damage. There were no network requests made- so if used in a real scenario this would likely be bundled with another form of spyware to retrieve that data.
